How to Create a Hengine Particle System

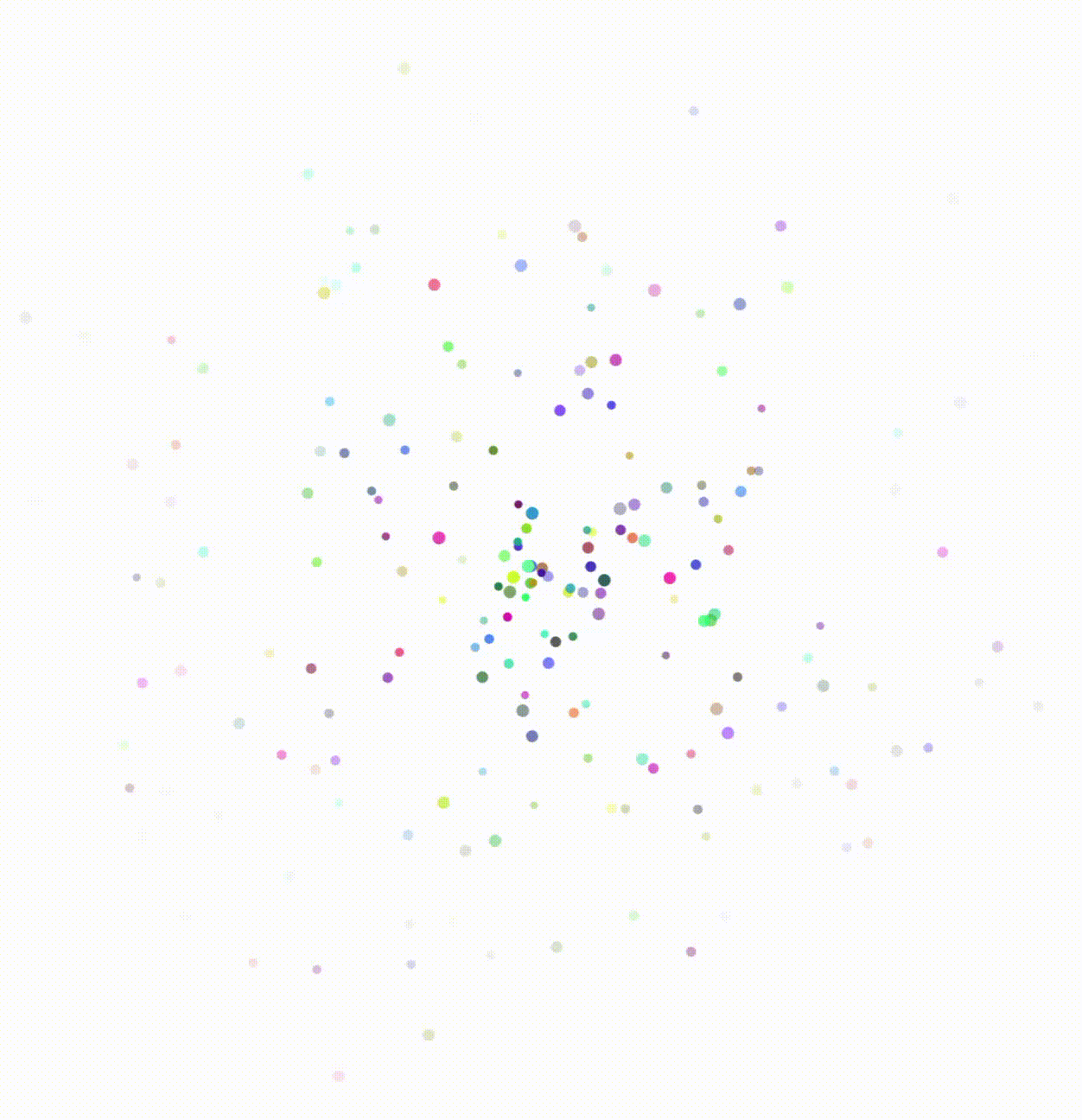

This document provides guidance on creating a basic, customizable particle system using the Hengine web game engine and the JavaScript programming language. In particular, it covers the basics of 2D particle systems, including their graphics, physics, and implementation in one engine. By the end of this process, you will have created a particle system similar to the one shown in Figure 1. Notably, this does not discuss JavaScript syntax or semantics, nor the fundamentals of computer graphics or classical physics.

(Optional) Particles: Conceptual Background

The fundamental concept behind creating a particle effect like the one in Figure 1 is that of the "particle spawner". A particle spawner is an imaginary "object" which exists at a given location and emits particles over time. Each particle then becomes an independent entity with its own motion and behavior which (in most cases) eventually decays and is deleted. By repeating this process, an infinite stream of particles can be created without consuming infinite memory and processing power.

Prerequisites

You need a few things before you can get started. Unfortunately, some of these take months or years to acquire. The prerequisites are listed below, in decreasing order of difficulty:

1. 1-2 hours of free time
2. Proficiency in JavaScript syntax and semantics (HTML and CSS knowledge are not necessary)
3. Basic knowledge of physical concepts like position, velocity, and acceleration
4. Very basic knowledge of integral and differential calculus
5. A computer, with:
   • Internet access (not necessarily reliable)
   • A text editor: VSCode, Notepad++, XCode, etc.
   • A browser: Chrome, Firefox, or Edge work best.

Creating the Particle System

Now that you have gathered your supplies, you can begin the project. The process is divided into four broad phases. An overview of those phases is given here, but if you are okay with surprises, you can safely skip this summary.

1. In the first phase, you will use the Hengine's shorthand project system to quickly create an environment in which you can develop the particles.
2. In the second phase, you will learn the basics of the Hengine's object system, and use it to construct an empty particle spawner.
3. In the third phase, you will learn how to create an increasingly interesting but generic particle system, similar to the one shown in Figure 1.
4. In the final (optional) phase, you will be exposed to various techniques for customizing and improving the visuals of your particle system.

Let's begin!

Phase 1: Creating the Project

Creating a new project in the Hengine is extremely simple if you have consistent internet access:

1. Create a blank text file with the .html extension (e.g. myParticles.html) using your text editor of choice.
2. Save this file to your computer, preferably in a memorable location, so you can open and refer to it later.
3. Within the file, add the following HTML:

   <script src="https://elkwizard.github.io/Hengine/Hengine.js">
       // this is where the rest of your code will go
   </script>


4. Open the file in your browser of choice. It displays a blank white screen.

Phase 2: Creating a Basic System

In the Hengine, the world consists of a set of WorldObjects, each of which can appear on the screen and respond to various events from the user or the engine. Collections of event-responses or "behaviors" are encapsulated into the ElementScript class. To create your particle system, you will create an object to act as a spawner, and then give it the Hengine's built-in particle management behaviors.

1. Create a new object to act as your spawner, by adding the following code in between the <script> tags of your HTML file from phase 1:

   const spawner = scene.main.addElement(
       "particleSpawner",
       width / 2, height / 2
   );


   The second and third arguments to addElement() specify the x- and y-coordinates of the object, which in this case is the middle of the screen.
2. Give the spawner object the particle spawning behavior with:

   spawner.scripts.add(PARTICLE_SPAWNER, {
       // options will go here
   });


Phase 3: Making It Visible

Now that you have a particle spawner, invisible though it may be, you've reached the fun part! The rest of this guide will be spent in the object literal argument to spawner.scripts.add(), which is used to provide custom particle behavior.

1. Add a function called draw to the object literal to render your particles. It needs two arguments:

   • renderer: This provides methods for drawing shapes on the screen.
   • particle: This is an object representing an individual particle. This draw method is be called every frame for every particle, and should render that particle to the screen.

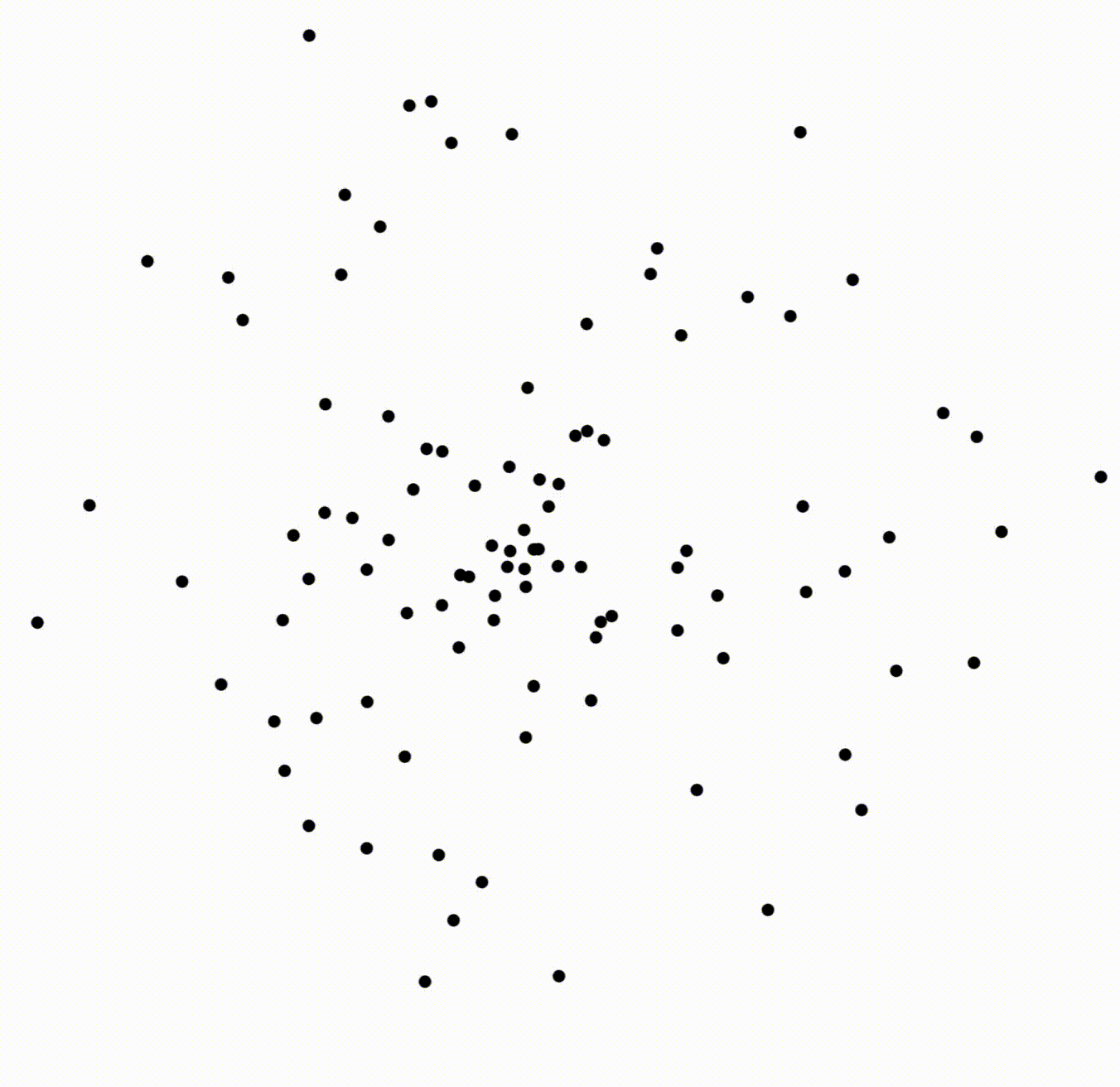

   A good starting point is this function, which draws each particle as a black filled-in circle with a 5-pixel radius. If you have done everything correctly, you see a small black dot (Figure 2).

   draw(renderer, particle) {
       renderer
           .draw(Color.BLACK)
           .circle(particle.position, 5);
   },


2. Give your particles velocity by creating an init function in the object literal. init is be called to initialize each particle when it first spawns. The init shown below gives each particle a velocity in a random direction with a speed between 3 and 5 pixels per frame. After reloading, you now see moving dots (Figure 3).

   init(particle) {
       particle.velocity = Vector2.polar(
           Random.angle(),
           Random.range(3, 5)
       );
   },

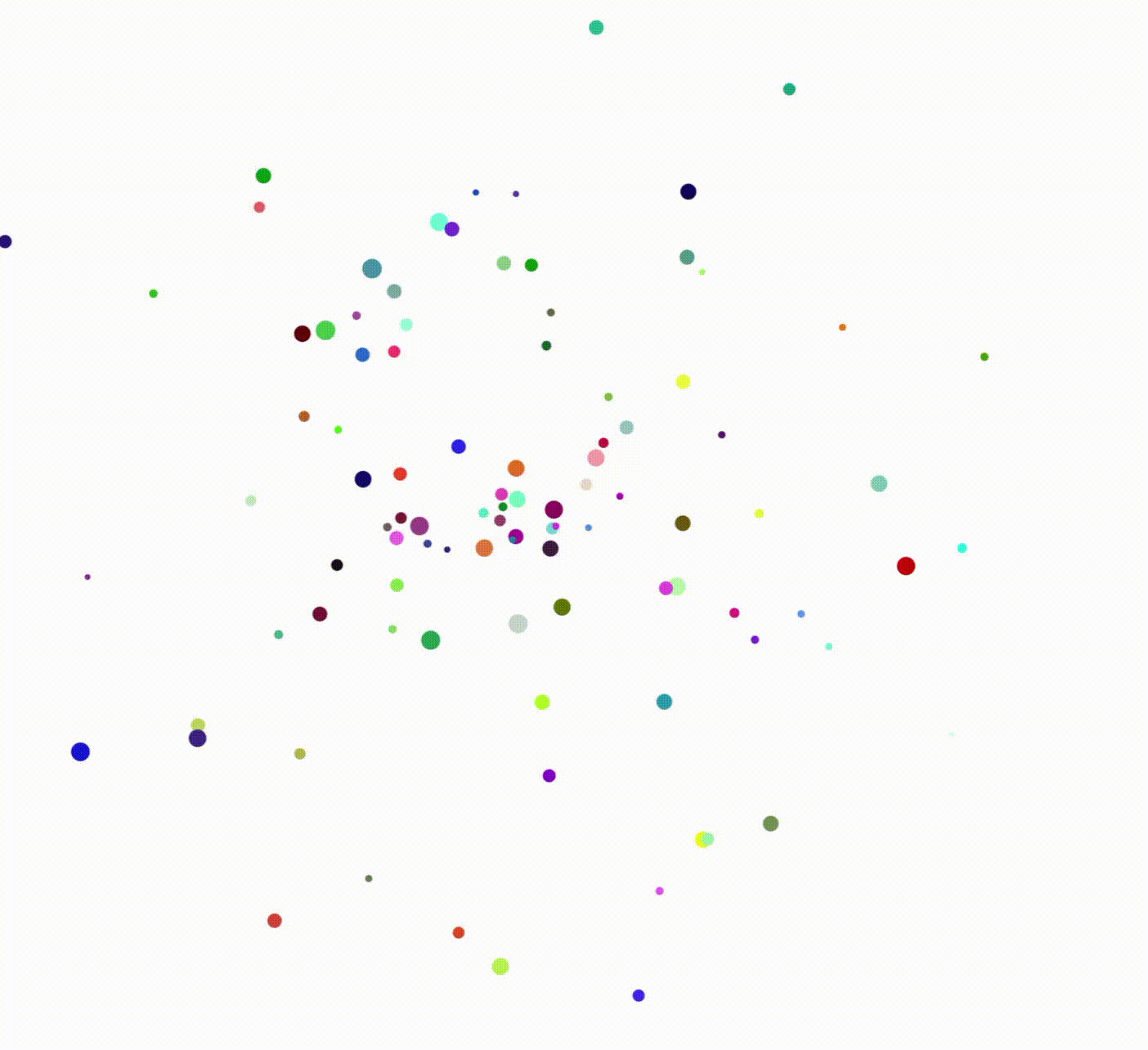

3. Give your particles variation by adding custom per-particle data. Each particle object has an embedded .data object which can be used to store whatever you want. To wrap up this phase, add .color and .radius data to your particles in init, and then use that information in draw. By again using Random, we can give each particle a random color and a radius between 2 and 8 pixels. After implementing this correctly, you should see something very similar to Figure 1!

   // in init (after current code)
   particle.data.color = Random.color();
   particle.data.radius = Random.range(2, 8);

   // in draw (replacing current code)
   renderer
       .draw(particle.data.color)
       .circle(particle.position, particle.data.radius);


(Optional) Phase 4: Further Customization

If you like your particle system, but want to make it more unique, this section provides several strategies for exploring more elaborate graphical possibilities. However, this section is unordered and optional. Feel free to complete any of these tasks that appeal to you, in any order.

Adding Gravity

To make your particles fall, simply:

1. Add falls: true, to the object literal, alongside init and draw.
2. If you want to customize the gravitational acceleration, set it in the global scope at the top of the file. The gravity value has units of pixels per frame².

   // values between 0.1 and 1 typically work best
   scene.physics.gravity.y = 0.1;

   // the rest of the file (no changes needed)
   const spawner = ...
   spawner.scripts.add(PARTICLE_SPAWNER, ...

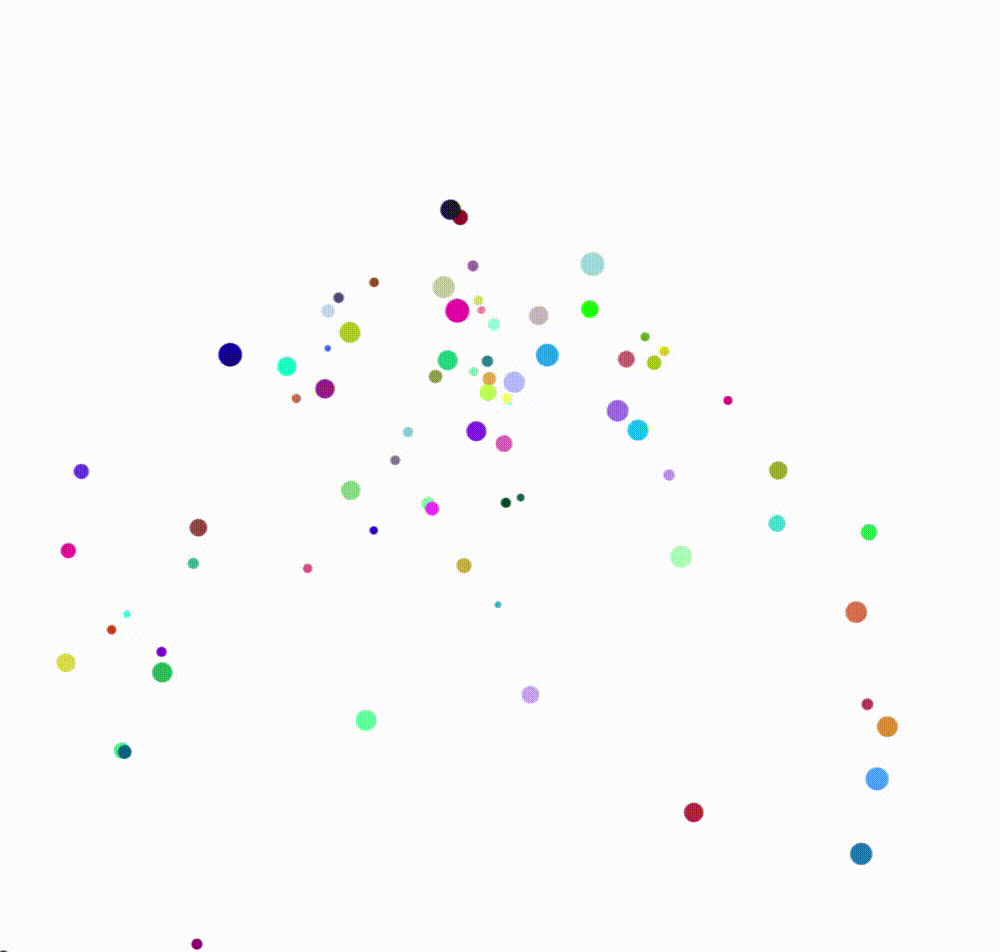

If you have completed these steps correctly, your particles are now moving in downward parabolic arcs, as shown in Figure 5.

Fading the Particles Over Time

To make your particles fade, you need information about where they are in their life cycle. This comes in the form of particle.timer, a value which interpolates from 0 to 1 over the course of the particle's life. Thus, to make the particles fade:

1. Add renderer.alpha = 1 - particle.timer; to the beginning of draw's body. This causes the opacity to linearly decrease over the particle's lifetime.
2. For more natural-looking fading behavior, try easing functions in the Interpolation class. For example, the following code concentrates the fade-out later in the particle's life:

   renderer.alpha = 1 - Interpolation.increasing(particle.timer);


If you have followed these steps correctly, your particles now gradually fade out rather than vanishing.

Customizing the Particles' Shape

The Hengine's support for many non-circle shapes can be found under Artist2D, DrawRenderer, and StrokeRenderer. To get started with them, the following example explains how to transform your particles into small "vectors" pointing in their direction of motion.

1. Compute the direction of motion at the top of draw(). Conveniently enough, this is just the direction (normalization) of particle.velocity:

   const direction = particle.velocity.normalized;


2. Replace your renderer.draw...circle statement with a renderer.stroke...arrow statement. You can re-use your custom data.radius property to make the arrows have varying lengths:

   // in draw (replacing renderer.draw...)
   // length is scaled up to be more visible
   const length = particle.data.radius * 3;
   const start = particle.position;
   const end = start.plus(direction.times(length));
   renderer
       .stroke(particle.data.color)
       .arrow(start, end);

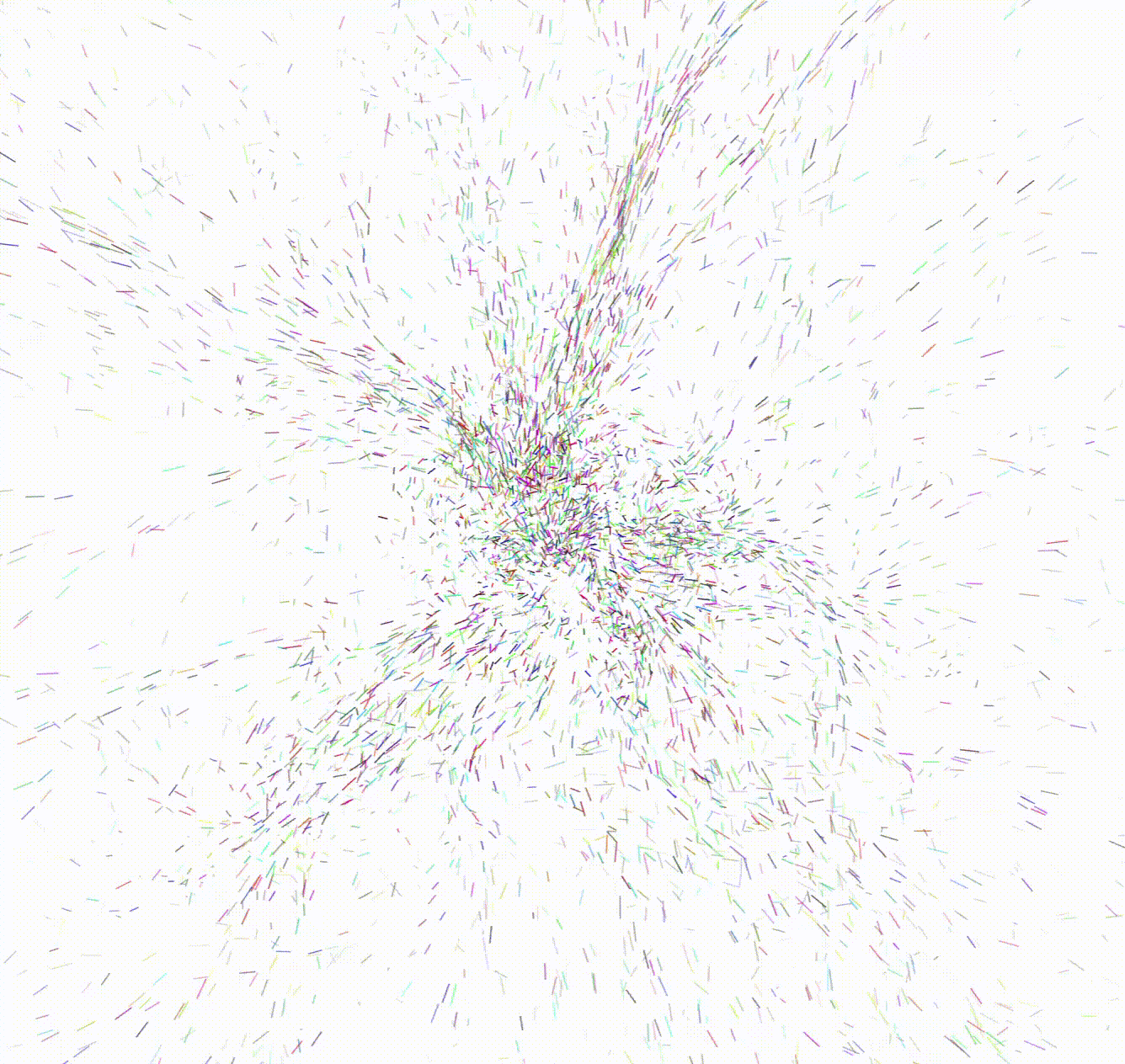

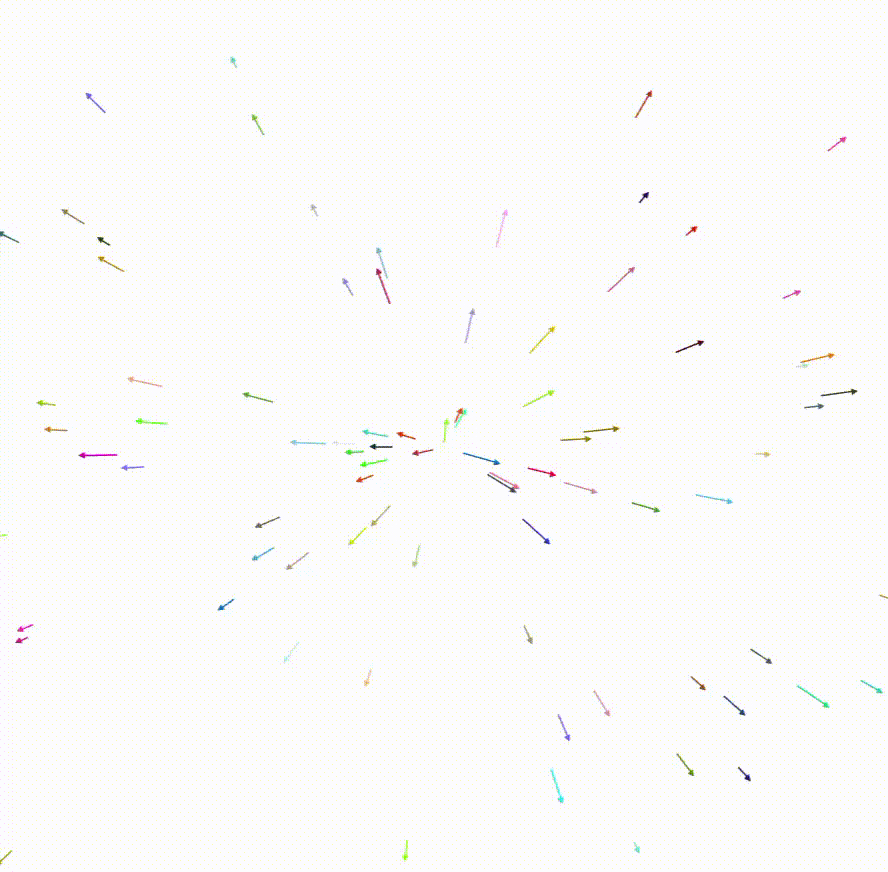

If you have followed these steps correctly, you now have a colorful vector field as shown in Figure 6!

Applying Custom Movement

One good way to diversify the appearance of your particles is to change their movement after they spawn. This is achieved in the Hengine through the use of an update(particle) function which is called on each time step. Within this function, the entire JavaScript language and Hengine libraries at your disposal. Below is one example of this function:

1. Add an update(particle) function to the object literal.

   update(particle) {
       // this is run every frame
   },


2. Change the particle's movement occasionally. Insert the following code into update(particle):

   // in update
   if (Random.bool(0.1)) // 10% chance each frame
       particle.velocity.angle = Random.angle();

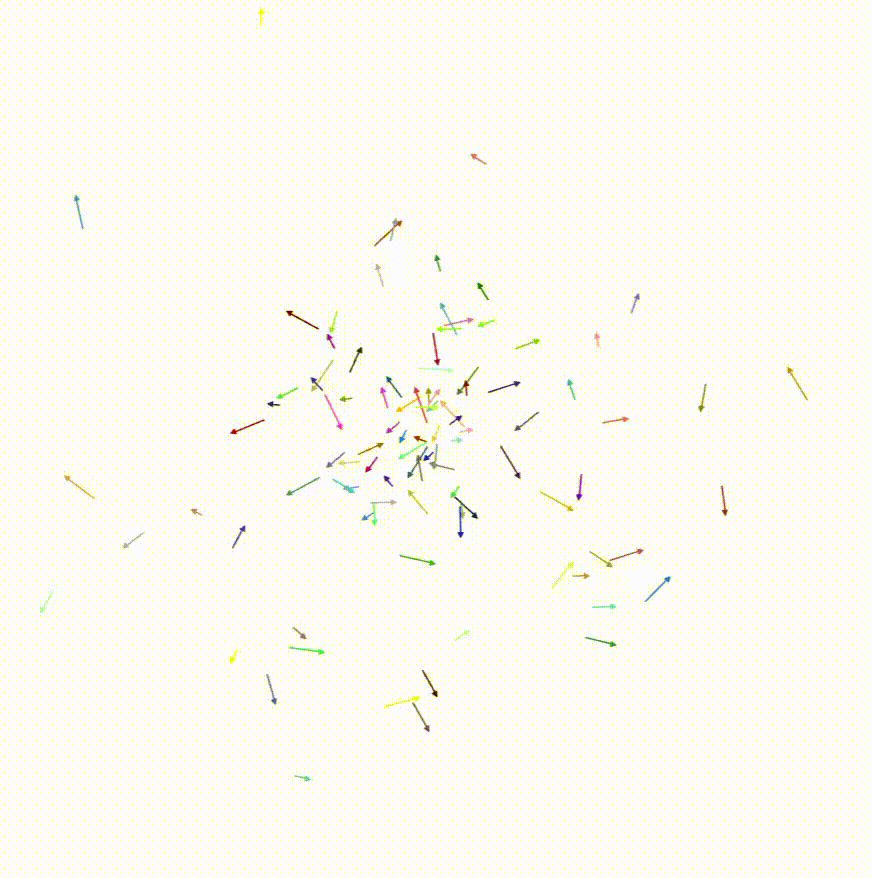

If you have followed these steps correctly, you now have a cloud of redirecting particles, as seen in Figure 7 (shown with the previous section's custom shapes). Crucially, this is just one example; there are infinitely many ways to use update and experimentation is a great way to learn them all.

Congratulations!

You now have a particle system with a multitude of features! No matter how many aspects of the system you pursued, this program will forever serve as an environment for creative experimentation with JavaScript in a visual context. Good luck and farewell!
